Product Summary
The RT9177-32PB is a 200mA low dropout and low noise micro-power regulator suitable for portable RF applications. The output voltage accuracy within ±2% and range from 2.4V to 3.2V in 100mV increments could be selected. The RT9177-32PB is designed for using very low ESR output capacitor. Its output remains stable even in using 1μF ceramic as its output capacitor. The applications of the RT9177-32PB include: Cellular Telephones, Laptop, Notebook, and Palmtop Computers, Battery-powered Equipment, Hand-held Equipment.
Parametrics
RT9177-32PB absolute maximum ratings: (1)Input Voltage VIN: 7V; (2)Power Dissipation SOT-25: 0.25W; (3)Operating Junction Temperature Range: -40℃ to 125℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Thermal Resistance RθJA: 250℃/W; (6)Lead Temperature(Soldering 5 sec.): 260℃.
Features
RT9177-32PB features: (1)Ultra-Low-Noise(150nV/√Hz ) for RF Application; (2)1μF Ceramic COUT Stable; (3)Low Dropout Voltage(220mV @ 200mA); (4)Low Operation Current - 80μA Typical; (5)Shutdown Function; (6)Low Temperature Coefficient; (7)Current and Thermal Limiting; (8)Custom Voltage Available; (9)SOT-25 Package.

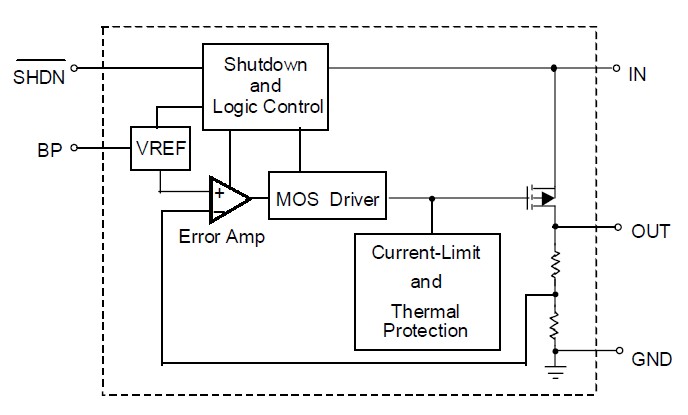

Diagrams
