Product Summary
Intended for analog and digital satellite receiver, the LNBP15ASP-TR is a monolithic linear voltage regulator, assembled in PowerSO-20, specifically designed to provide the powering voltages and the interfacing signals to the LNB downconverter situated in the antenna via the coaxial cable.
Parametrics
LNBP15ASP-TR absolute maximum ratings: (1)DC Input Voltage (VCC1, VCC2, MI), Vi: 28V; (2)Output Current (LNBA, LNBB), Io: Internally limited; (3)Logic Input Voltage (ENT, EN, OSEL, VSEL, LLC), Vi: -0.5 to 7V; (4)Bypass Switch Current, ISW: 900 mA; (5)Power Dissipation at Tcase < 85℃, Ptot: 14W; (6)Storage Temperature Range, Tstg: -40 to 150℃; (7)Operating Junction Temperature Range, Top: -40 to 125℃.
Features
LNBP15ASP-TR features: (1)complete interface for two lnbs remote supply and control; (2)lnb selectionand stand-by function; (3)built-intone oscillator factory trimmed at 22khz; (4)fast oscillatorstart-up facilitatesdiseqc] encoding; (5)two supply inputs for lowest dissipation; (6)bypassfunction for slave operation; (7)lnb short circuit protection and diagnostic; (8) auxiliarymodulation input extends flexibility; (9)cable length compensation; (10)internal over temperature protection; (11)backward current protection.

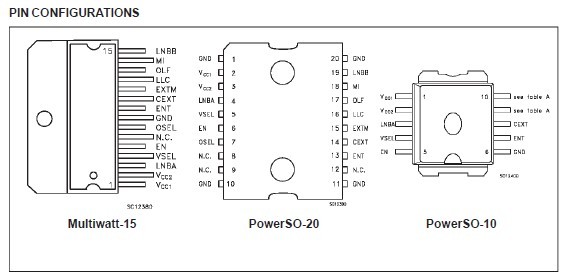

Diagrams
 |
