Product Summary
The PMB7725HV1.352 is a PNP silicon power transistor. It is designed for output stage of 3 watts audio amplifier, voltage regulator, DC-DC converter and relay driver.
Parametrics
PMB7725HV1.352 absolute maximum ratings: (1)Collector Base Voltage VCBO: -40V; (2)Collector Emitter Voltage VCEO: -30V; (3)Emitter Base Voltage VEBO: -5V; (4)Collector Current (DC) IC(DC): -3A; (5)Collector Current (Pulse) IC(Pulse)*: -7A; (6)Total Power Dissipation Ptot: 1W at Ta=25℃; 10W at Tc=25℃; (7)Storage Temperature Tstg: -55 to 150 ℃; (8)Junction Temperature Tj: 150 ℃.
Features
PMB7725HV1.352 electrical characteristics: (1)Collector Cutoff Current ICBO: -1μA; (2)Emitter Cutoff Current IEBO: -1μA; (3)Collector Saturation Voltage VCE(sat): -0.3 to -0.5 V; (4)Base Saturation Voltage VBE(sat): -1 to -2 V; (5)DC Current Gain hFE1: 30 to 220; (6)DC Current Gain hFE2: 60 to 400; (7)Gain Bandwidth Product fT: 80MHz; (8)Output Capacitance Cob: 55pF.

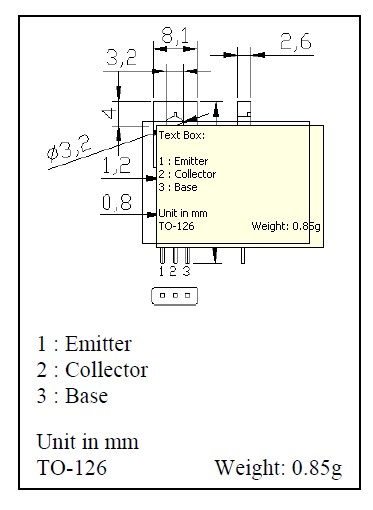

Diagrams
 |
