Product Summary
The BR24L16FJ-WE2 is 2-wire (I2C BUS type) serial EEPROM which is electrically programmable for General purpose applications.
Parametrics
BR24L16FJ-WE2 absolute maximum ratings: (1)Supply voltage: -0.3 to +6.5 V; (2)Power dissipation: 800 mW; (3)Storage temperature: -65 to +125 ℃; (4)Operating temperature: -40 to 85 ℃; (5)Terminal voltage: -0.3 to VCC+0.3 V.
Features
BR24L16FJ-WE2 features: (1)2k registers × 8 bits serial architecture; (2)Single power supply (1.8V to 5.5V); (3)Two wire serial interface; (4)Self-timed write cycle with automatic erase; (5)16 byte page write mode; (6)High reliability EEPROM with Double-Cell structure; (7)High reliability fine pattern CMOS technology; (8)Endurance : 1,000,000 erase / write cycles; (9)Data retention : 40 years; (10)Filtered inputs in SCL.SDA for noise suppression; (11)Initial data FFh in all address.

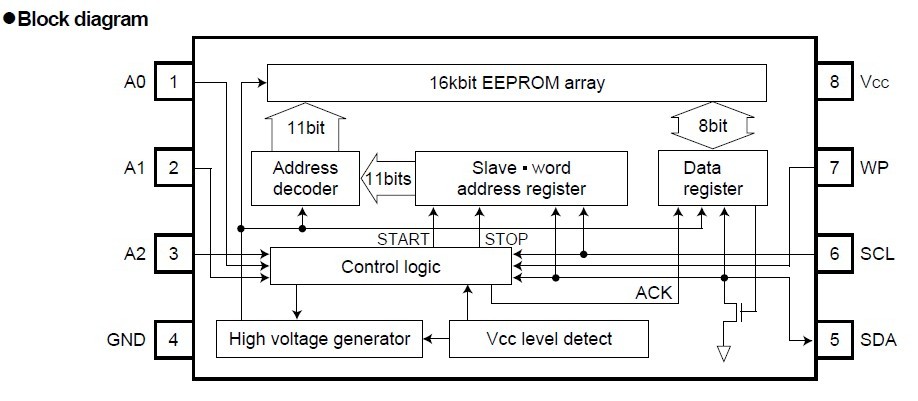

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BR24L16FJ-WE2 |
ROHM Semiconductor |
EEPROM SRL 2KX8 BIT |
Data Sheet |
|
|
||||||
