TPS62510DRCR

high-efficiency step-down converter, 1.5A, 10SON, QFN, 1.8V to 3.8V, 1.5 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.80

PartNumber:: TPS62510DRCR

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bull Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-06

From Other Seller

Part Number:TPS62510DRCR
US $0.50 - 0.80
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

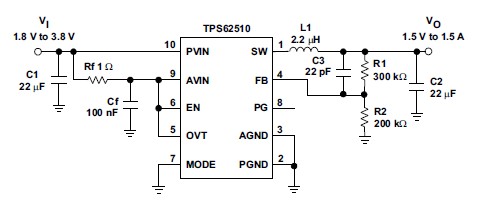

The TPS62510DRCR is a high-efficiency step-down converter targeted for operation from a 1.8-V to 3.8-V input voltage rail, ideally suited for 2-cell Alkaline or NiMHd applications. The TPS62510DRCR is also ideal as a point-of-load regulator running from a fixed 3.3-V, 2.5-V or 1.8-V input voltage rail. The converter operates in fixed frequency PWM mode switching at 1.5 MHz with the MODE pin high. Pulling the MODE pin low enables the high efficiency mode. The applications of the TPS62510DRCR include: (1)Portable Devices (Mobile Phone, PDA); (2)2-Cell NiMHd/Alkaline Applications; (3)Hard Disc Drives; (4)Point-Of-Load Regulation; (5)Notebook Computers; (6)WiMAX and WLAN Applications.

Parametrics

TPS62510DRCR absolute maximum ratings: (1)VS Supply voltage at PVIN, AVIN: –0.3 to 4 V; (2)Voltage at EN, MODE, OVT, FB, PG: –0.3 to 4 V; (3)Voltage at SW: -0.3 to VI + 0.3 V; (4)TJ Operating junction temperature range: -40 to 150 ℃; (5)Tstg Storage temperature: -65 to 150 ℃.

Features

TPS62510DRCR features: (1)1.8-V to 3.8-V Input Voltage Range; (2)Up to 96% High Efficiency Synchronous Step-Down Converter; (3)1.5-MHz Fixed Frequency PWM Operation; (4)1% Output Voltage Accuracy in Fixed Frequency PWM Mode; (5)Power Save Mode Operation for High Efficiency Over the Entire Load Current Range; (6)22-μA Quiescent Current; (7)Fixed and Adjustable Output Voltage; (8)Output Voltage Tracking (OVT) for Reliable Sequencing; (9)Available in a 10-Pin QFN (3 × 3 mm) Package.
