TAS5142DDVRG4

integrated stereo digital amplifier, improved protection system, 4-Ω bridge-tied load

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.50

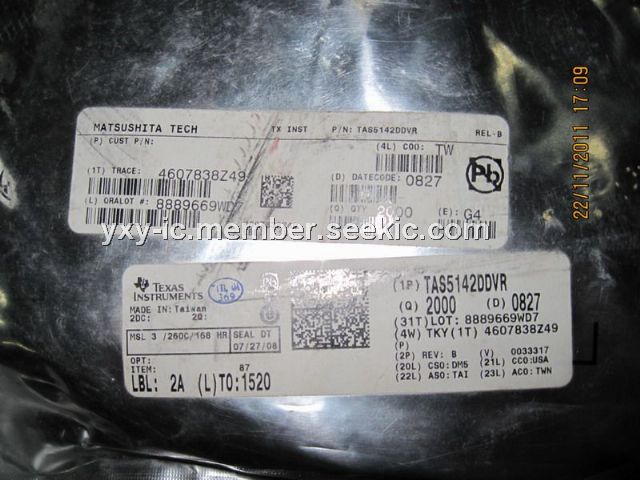

PartNumber:: TAS5142DDVRG4

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bull Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-11

From Other Seller

Part Number:TAS5142DDVRG4
US $0.90 - 1.50
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

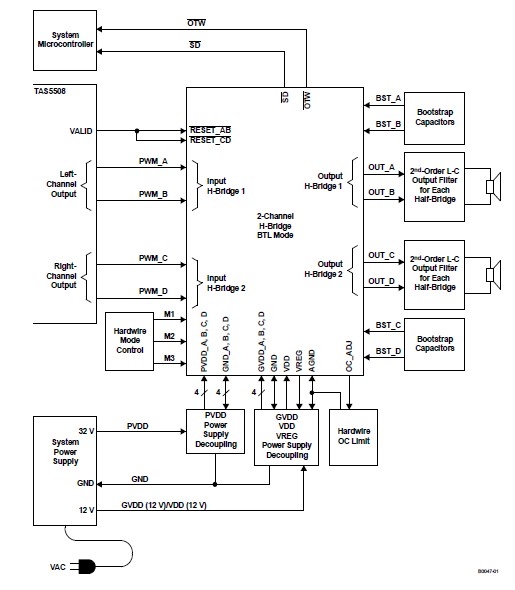

The TAS5142DDVRG4 is a third-generation, high-performance, integrated stereo digital amplifier power stage with an improved protection system. The TAS5142DDVRG4 is capable of driving a 4-Ω bridge-tied load (BTL) at up 100 W per channel with low integrated noise at the output, low THD+N performance, and low idle power dissipation. The applications of the TAS5142DDVRG4 include: Mini/Micro Audio System, DVD Receiver, Home Theater.

Parametrics

TAS5142DDVRG4 absolute maximum ratings: (1)VDD to AGND: –0.3 V to 13.2 V; (2)GVDD_X to AGND: –0.3 V to 13.2 V; (3)PVDD_X to GND_X: –0.3 V to 50 V; (4)OUT_X to GND_X: –0.3 V to 50 V; (5)BST_X to GND_X: –0.3 V to 63.2 V; (6)VREG to AGND: –0.3 V to 4.2 V; (7)GND_X to GND: –0.3 V to 0.3 V; (8)GND_X to AGND: –0.3 V to 0.3 V; (9)GND to AGND: –0.3 V to 0.3 V; (10)PWM_X, OC_ADJ, M1, M2, M3 to AGND: –0.3 V to 4.2 V; (11)RESET_X, SD, OTW to AGND: –0.3 V to 7 V; (12)Maximum continuous sink current (SD, OTW): 9 mA; (13)Maximum operating junction temperature range, TJ: 0℃ to 125℃; (14)Storage temperature: –40℃ to 125℃; (15)Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (16)Minimum pulse duration, low: 50 ns.

Features

TAS5142DDVRG4 features: (1)Two Thermally Enhanced Package Options: DKD (36-pin PSOP3), DDV (44-pin HTSSOP); (2)High-Efficiency Power Stage (>90%) With 140-mW Output MOSFETs; (3)Power-On Reset for Protection on Power Up Without Any Power-Supply Sequencing; (4)Integrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overload, Short Circuit; (5)Error Reporting; (6)EMI Compliant When Used With; (7)Recommended System Design; (8)Intelligent Gate Drive.
