ADS1230IPWRG4

20-bit analog-to-digital converter, TSSOP, 2.7V to 5.3V, Onboard Oscillator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.50

PartNumber:: ADS1230IPWRG4

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bull Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-12

From Other Seller

Part Number:ADS1230IPWRG4
US $0.90 - 1.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

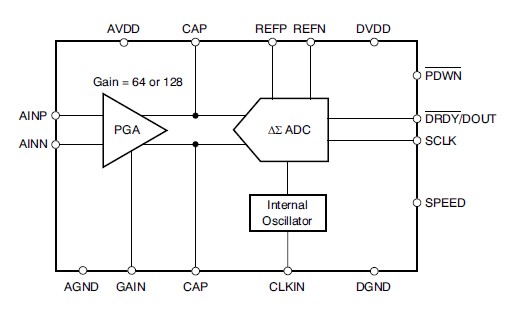

The ADS1230IPWRG4 is a precision 20-bit analog-to-digital converter (ADC). With an onboard low-noise programmable gain amplifier (PGA), onboard oscillator, and precision 20-bit delta-sigma ADC, the ADS1230IPWRG4 provides a complete front-end solution for bridge sensor applications including weigh scales, strain gauges, and pressure sensors. The applications of the ADS1230IPWRG4 include: Weigh Scales, Strain Gauges, Pressure Sensors, Industrial Process Control.

Parametrics

ADS1230IPWRG4 absolute maximum ratings: (1)AVDD to AGND: –0.3 to +6 V; (2)DVDD to DGND: –0.3 to +6 V; (3)AGND to DGND: –0.3 to +0.3 V; (4)Input Current: 100, Momentary mA, 10, Continuous mA; (5)Analog Input Voltage to AGND: –0.3 to AVDD + 0.3 V; (6)Digital Input Voltage to DGND: –0.3 to DVDD + 0.3 V; (7)Maximum Junction Temperature: +150 ℃; (8)Operating Temperature Range: –40 to +85 ℃; (9)Storage Temperature Range: –60 to +150 ℃.

Features

ADS1230IPWRG4 features: (1)Complete Front-End for Bridge Sensor ; (2)Onboard PGA with Gain of 64 or 128 ; (3)Onboard Oscillator ; (4)18-Bit Noise-Free Resolution; (5)Selectable 10SPS or 80SPS Data Rates; (6)Simultaneous 50Hz and 60Hz Rejection at 10SPS; (7)External Voltage Reference up to 5V for Ratiometric Measurements ; (8)Simple, Pin-Driven Control; (9)Two-Wire Serial Digital Interface; (10)Tiny 16-pin TSSOP Package; (11)Supply Range: 2.7V to 5.3V; (12)–40℃ to +85℃ Temperature Range.
