Product Summary
The ADXL322JCP-REEL7 is a small, thin, low power, complete, dual-axis accelerometer with signal conditioned voltage outputs, which are all on a single monolithic IC. The product measures accel-eration with a full-scale range of ±2 g (typical). The ADXL322JCP-REEL7 can also measure both dynamic acceleration (vibration) and static acceleration (gravity). The typical noise floor is 220 μg/√Hz, which allows signals below 2 mg to be resolved in tilt-sensing applications using narrow bandwidths (<60 Hz). The ADXL322JCP-REEL7 is designed for Cost-sensitive motion- and tilt-sensing applications: Smart hand-held devices, Mobile phones, Sports and health-related devices, PC security and PC peripherals.
Parametrics
ADXL322JCP-REEL7 absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered): 10,000 g; (2)Acceleration (Any Axis, Powered): 10,000 g; (3)VS: -0.3 V to +7.0 V; (4)All Other Pins: (COM - 0.3 V) to (VS + 0.3 V); (5)Output Short-Circuit Duration (Any Pin to Common): Indefinite; (6)Operating Temperature Range: -55℃ to +125℃; (7)Storage Temperature: -65℃ to +150℃.
Features
ADXL322JCP-REEL7 features: (1)Small and thin: 4 mm × 4 mm × 1.45 mm LFCSP package; (2)2 mg resolution at 60 Hz; (3)Wide supply voltage range: 2.4 V to 6 V; (4)Low power: 340 μA at VS = 2.4 V (typ); (5)Good zero g bias stability; (6)Good sensitivity accuracy; (7)X-axis and Y-axis aligned to within 0.1° (typ); (8)BW adjustment with a single capacitor; (9)Single-supply operation; (10)10,000 g shock survival; (11)Pb Free: Compatible with Sn/Pb and Pb-free solder processes.

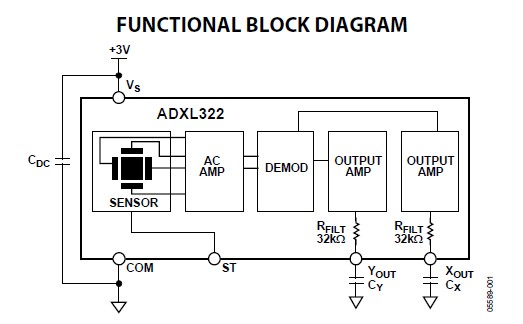

Diagrams
